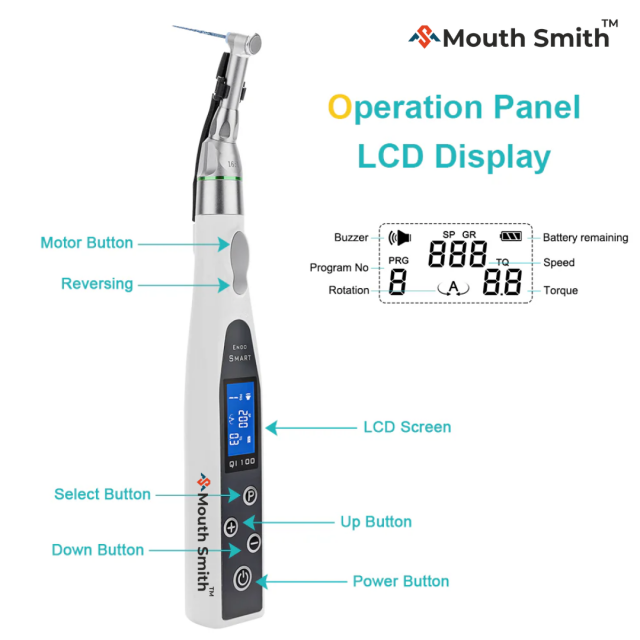

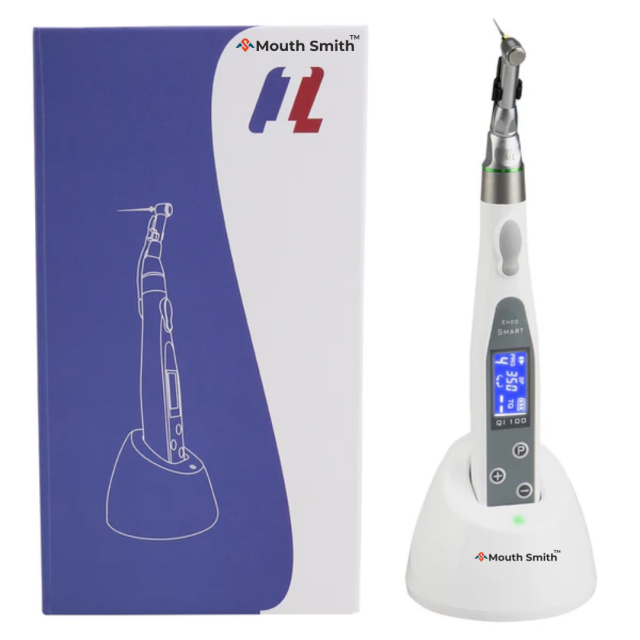

Mouth Smith Endo Motor is an advanced endodontic tool designed to drive Ni-Ti instruments during root canal procedures. Utilizing micro-electron control technology, it helps dentists achieve more precise root canal shaping. This handheld, cordless device is rechargeable and designed to reduce the workload on dentists.
Before use, carefully read the operation manual for detailed instructions on operation, care, and maintenance. It is recommended to keep the manual for future reference.
**Features:**
– Independent endodontic shaping capability.
– 9 programmable settings tailored to the operator’s preferences.
– Automatic withdrawal of the rotary file when preset torque is reached, ensuring safety by removing resistance.
– Powered by a rechargeable lithium battery that turns off automatically after 8 minutes of inactivity, extending battery life.
– Autoclavable contra angle, file clip, and lip hook at 135°C for optimal sterilization.
– High-brightness LED light improves visibility in the root canal environment.
– Ergonomic design, making it portable and easy to use.
– Built-in high-capacity lithium battery reduces battery replacement frequency and operational costs.
– 16:1 handpiece and lamp holder can withstand 135°C high temperature and high-pressure sterilization.

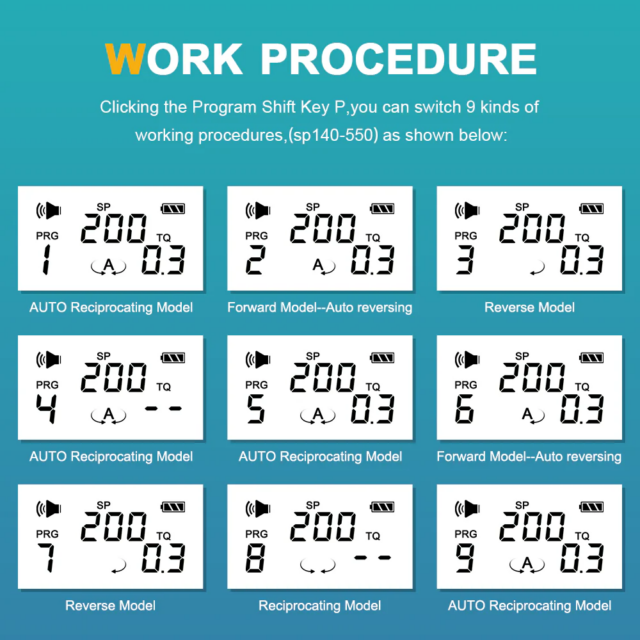

– 4+1 operating modes with 9 preset programs for flexibility.
– Soft start and stop mechanisms provide smoother operation and reduce the risk of breaking files during sudden impacts.
**Specifications:**
– **Working Modes:** 4+1 modes
– **Programs:** 9 preset programs
– **LED Lights:** 2 pieces
– **Battery:** Rechargeable lithium battery, DC 3.7V, 950mAh capacity
– **Input Voltage:** AC110-220V 50-60Hz
– **Output Voltage:** DC 5V
– **Contra Angle:** 16:1 ratio
– **Charging Time:** Approximately 3 hours
– **Weight:** 500g
– **Dimensions:** 188x90x85mm

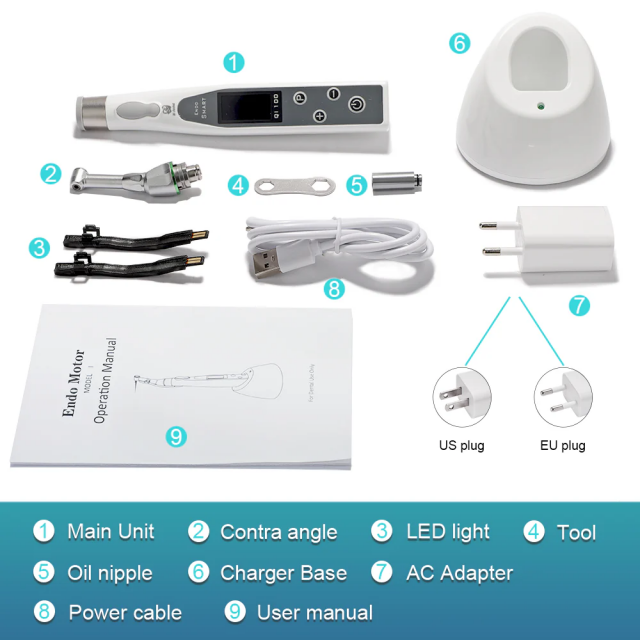

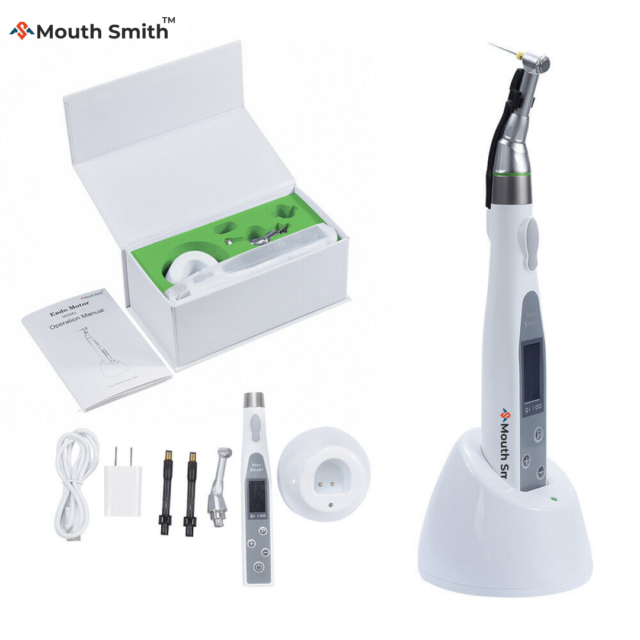

**Package Includes:**
– 1 Main Unit
– 1 Charging Base
– 2 Light Strips
– 1 16:1 Contra-angle
– 1 Power Adapter
– 1 Instruction Manual
**Cleaning & Sterilization Instructions:**
– **Sterilization:**
– Autoclave the contra angle and rotary file after each use, up to 135°C. Autoclaving is recommended for 20 minutes at 121°C or 15 minutes at 132°C.
– Do not autoclave the main unit or charging base.
– Use AR spray to clean the contra angle before autoclaving.
– Do not use solvents such as benzine or thinner for sterilization.
– **Cleaning:**
– Wipe the main unit with a neutral detergent as needed.
